Service Options
For aluminum columns, the following services are available:

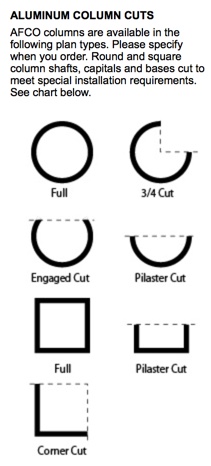

- Round and square columns modified to wrap-around an existing structural post. See chart below.
- Round and square shafts cut to specific lengths.
SHAFTS
- Round and square columns may be split for pilasters.
- Round and square columns may be modified for wrap-around installation.
- All shafts may be cut to specific length. (charges apply)
- All aluminum cap and base sets must be modified for wrap-around applications. (charges apply)
COLUMNS TO SURROUND STRUCTURAL SUPPORT | ||||
---|---|---|---|---|
Size | No. of Staves Per Column |
Largest Round Support |
Largest Square Support |
Load Bearing Plate |
Fluted Aluminum | ||||
6" Round | 3 | 4-1/2" | 3-1/2" | A |
8" Round | 3 | 6-1/4" | 4-1/2" | C |
10" Round | 4 | 7-3/4" | 6" | E |
12" Round | 5 | 9-3/4" | 7-1/2" | N/A |
15" Round | 5 | 12" | 9" | N/A |
18" Round | 6 | 15" | 11" | N/A |
24" Round | 6 | 22" | 15" | N/A |
4" Square | 2 | 3" | 3" | N/A |
6" Square | 4 | 4-7/8" | 4-1/2" | B |
8" Square | 4 | 6-7/8" | 6-1/2" | D |
10" Square | 4 | 8-1/2" | 8-1/2" | E |
12" Square | 8 | 10" | 10" | N/A |
Wellington Aluminum | ||||
6" | 4 | 5" | 4-1/2" | B |
8" | 4 | 6" | 5-1/2" | D |
9" | 4 | 8" | 7" | E |
Empire Aluminum | ||||
6" | 4 | 5" | 4-1/2" | B |
8" | 4 | 6" | D | |
9" | 4 | 8" | 7" | E |
Acadian Aluminum | ||||
6" | 4 | 4-1/2" | 4-1/2" | A |
8" | 4 | 5-3/4" | 5-3/4" | D |
Craftsman Aluminum | ||||
6" | 4 | 5" | 4" | N/A |
Load Bearing Plate Size Codes | |
---|---|
Size | Code |
7-3/16" x 7-3/16" | A |
7-7/8" x 7-7/8" | B |
9" x 9" | C |
9-5/8" x 9-5/8" | D |
10-3/4" x 10-3/4" | E |
